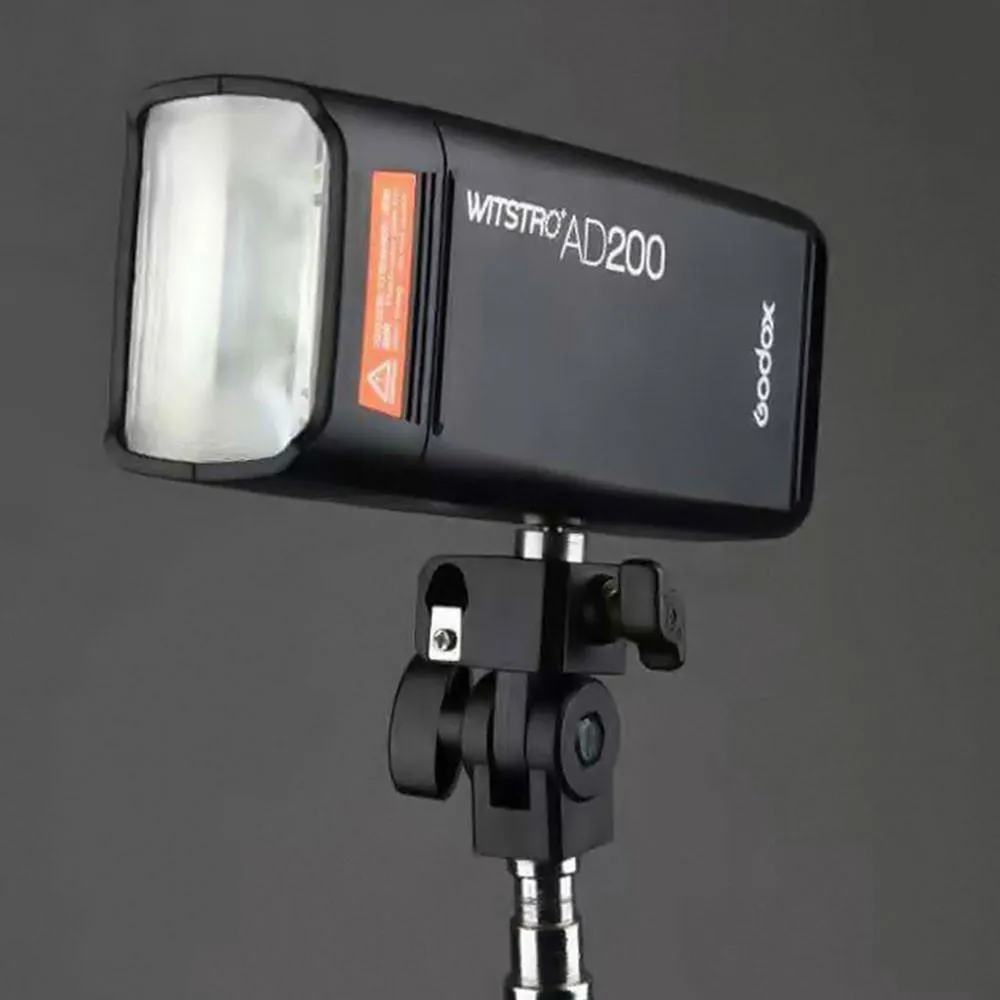

The AD200 is a 200W cordless Lithium-ion powered TTL and HSS enabled strobe with an in-built Godox 2.4GHz X-system radio receiver inside (currently for Canon, Nikon, and Sony).
Being dedicated off camera flashes they feature no hotshoe and are a slimline monoblock unit. The AD200 provide a similar compact size of a speedlite though with some added power.

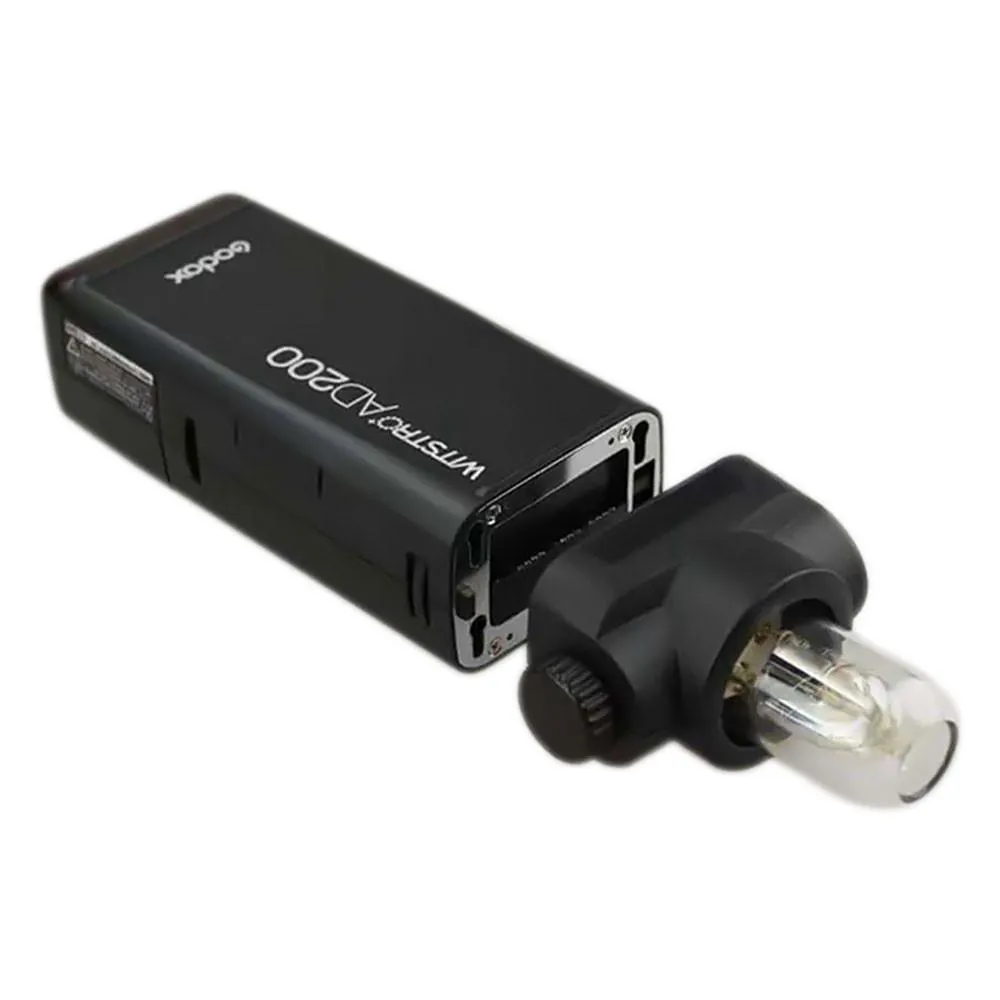

While also featuring an interchangeable flash head which provides the option of either bare bulb or traditional speedlite fresnel head.
The AD200 can be mounted via a 1/4″ threaded mounting hole on either side of the flash allowing landscape or portrait orientation when using the speedlite head.

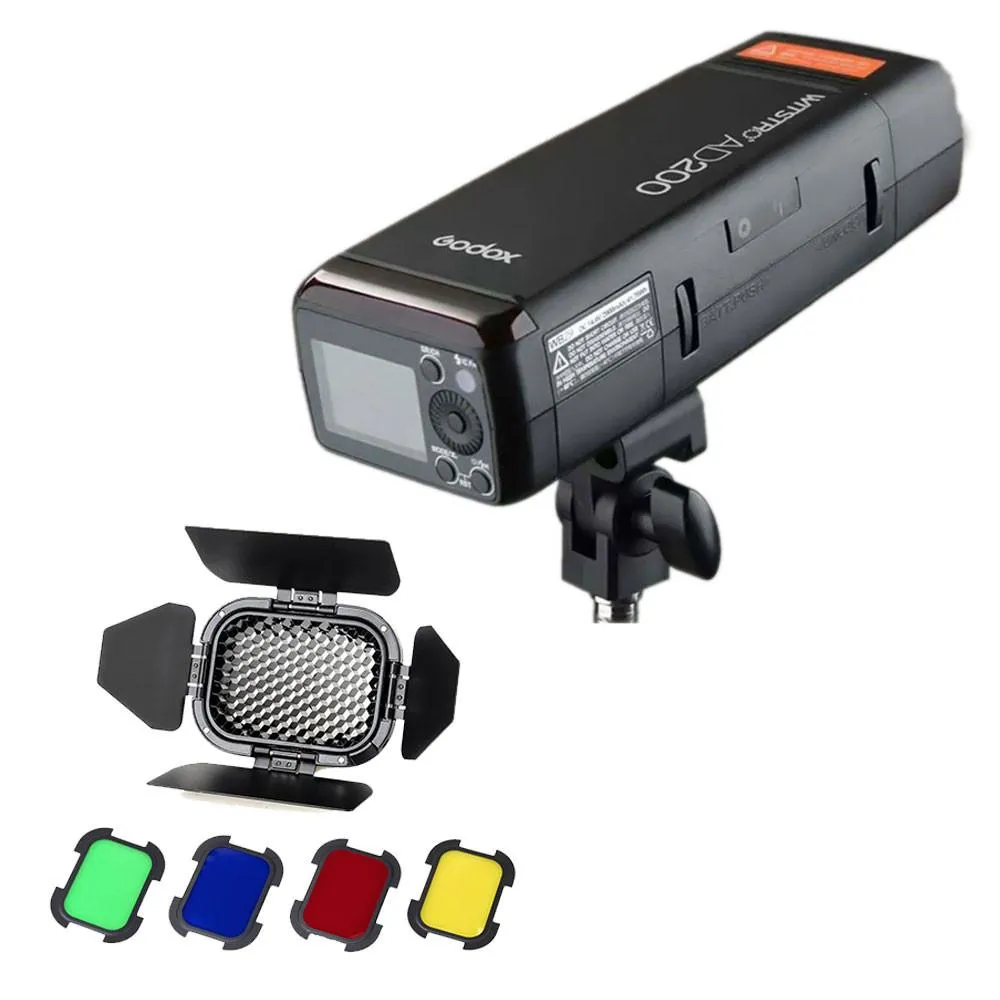

This set also includes the Godox BD-07 Barndoor, Honeycomb Grid and 4 Colour Gel Set.

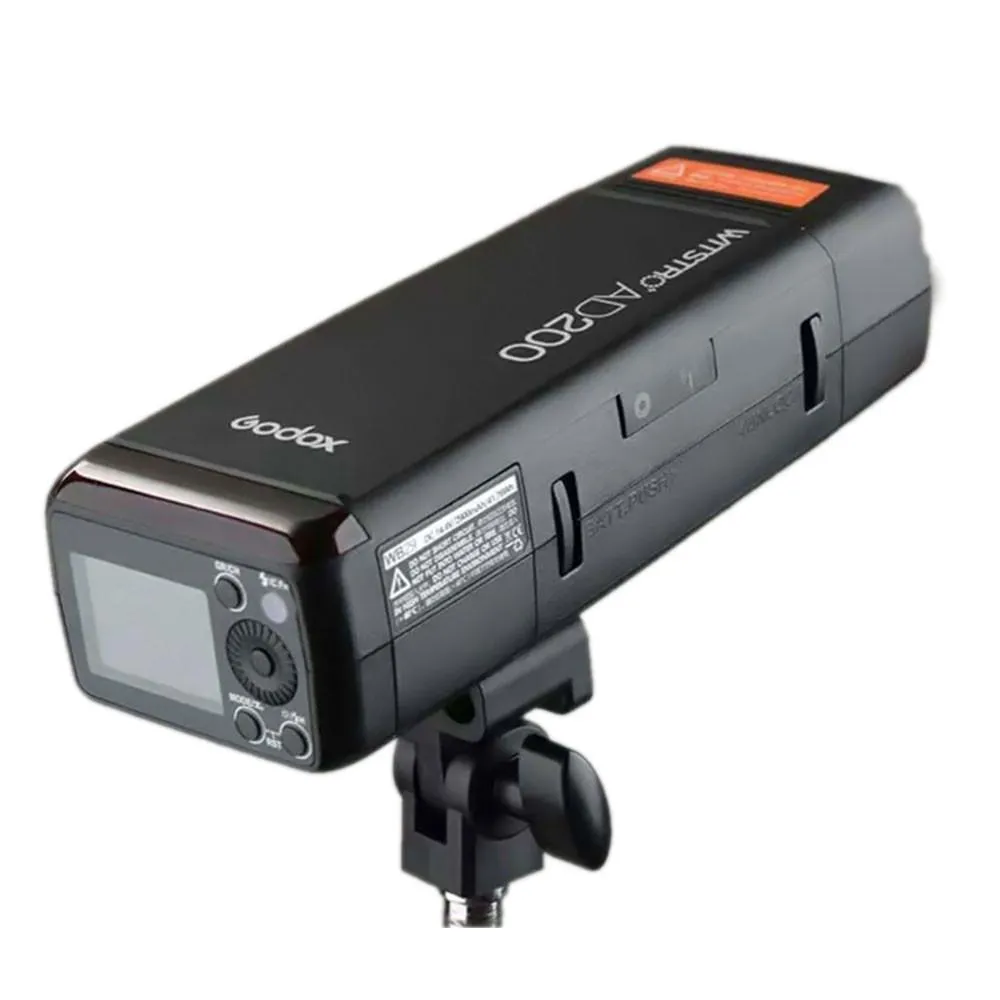

Godox Witstro AD200 200W Cordless Portable Outdoor TTL Flash Strobe
The AD200 is a 200W cordless Lithium-ion powered TTL and HSS enabled strobe with an in-built Godox 2.4GHz X-system radio receiver inside (currently for Canon, Nikon, Olympus/Panasonic, Fuji and Sony). Being dedicated off camera flashes they feature no hotshoe and are a slimline monoblock unit. The AD200 provide a similar compact size of a speedlite with some added power.
Specifications
| Maximum Watt/Seconds | 200 |
| Compatibility | TTL with Canon, Nikon, Sony cameras with optional X1-C, X1-N, and X1-S transmitters TTL with Olympus/Panasonic, Fuji cameras with optional X1T-O and X1T-F transmitters |

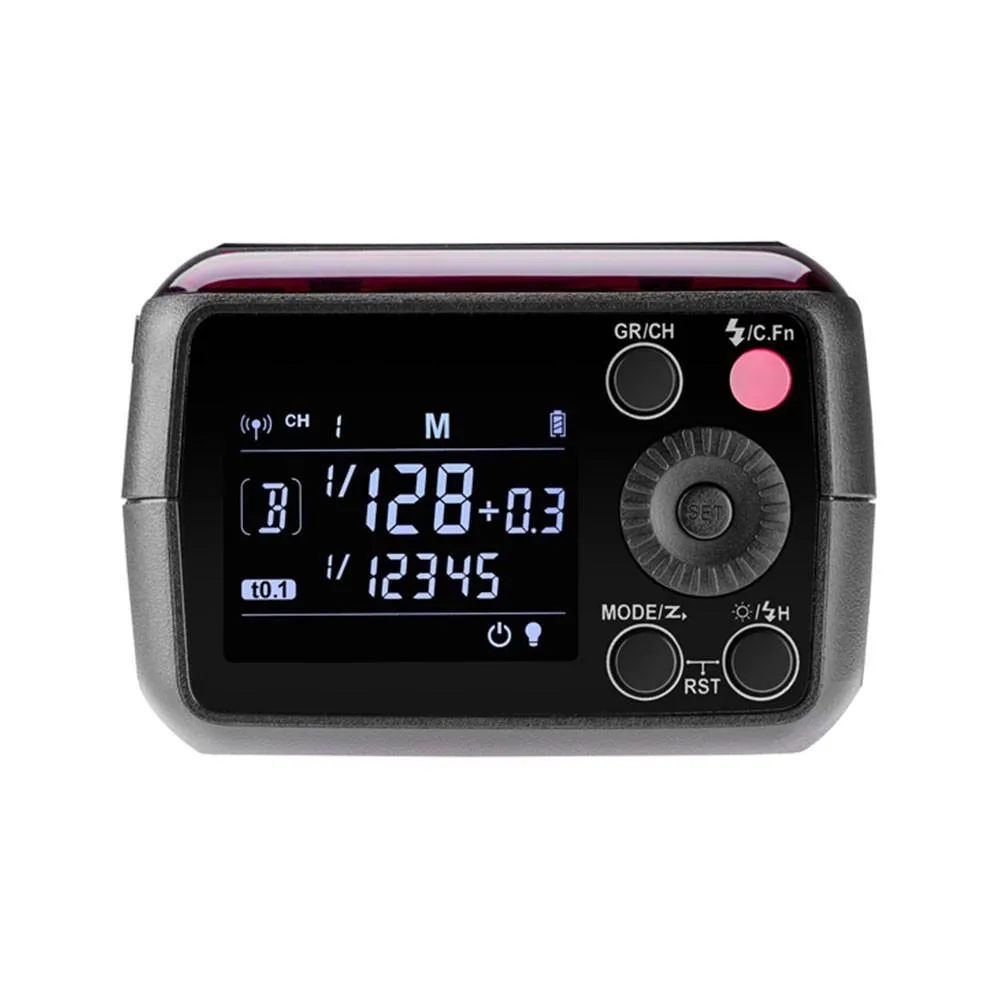

| Control | Manually on unit Via X1 Transmitter Which Will Wirelessly Control: Flash Mode: TTL, Manual, Multi (Stroboscopic), power level Modeling lamp on/off, Beeper on/off First and second curtain sync, High Speed Sync |
| Guide Number | At Full Power: Speedlite Flash Head: 170.6' (52 m) ISO 100 @ 35 mm Bare Bulb Flash Head: 197' (60 m) ISO 100 with AD-S2 reflector @ 28 mm |
| Color Temperature | 5600K ( /-200K) |
| Recycle Time | 0.01 to 2.1 sec |
| Flash Duration | Speedlite Flash Head at t0.1: 1/220 to 1/13,000 sec Bare Bulb Flash Head at t0.1: 1/220 to 1/11,300 sec |
| Flash Variability | 8 Steps: 1/128 to 1/1 |
| Flash Delay | Yes, 0.01 to 30 sec |
| Flash Modes | TTL, Manual, Multi (Stroboscopic) Stroboscopic: up to 90 times (99 Hz) |
| Modeling Light | Uses Speedlite Head: Auto turn off after 30 minutes |
| Sync Mode | High-speed sync up to 1/8000 sec First curtain sync and second curtain sync |
| Flash Exposure Compensation | Yes, plus or minus 3 stops in 1/3 stop increments |
| Flash Ready Indicator | LED, beep Flash hibernates automatically after 30 minutes of non-use |
| Built-in Slave Cell | S1 and S2 optical slave modes 2.4 GHz radio system |
| Wireless & Radio Specifications | Function: Slave or Off Channels: 32 Groups: 5 (A, B, C, D, E) Range: 328' (100 m) |
| Mounting | 1/4"-20 female threads AD-E Holder (stand mount) |
| Fan Cooled | No |
| Replaceable Flashtube | Yes, in bare bulb head |
| Connectors | 3.5 mm sync input Wireless control port USB port |
| Battery | Lithium, 14.4 V / 2900 mAH Power remaining indicator |
| Number of Flashes @ Full Power | 500 |
| Dimensions | 6.6 x 3.0 x 2.0" (168 x 75 x 50 mm) without flash head |
| Weight |
19.7 oz (560 g) without flash head and battery |

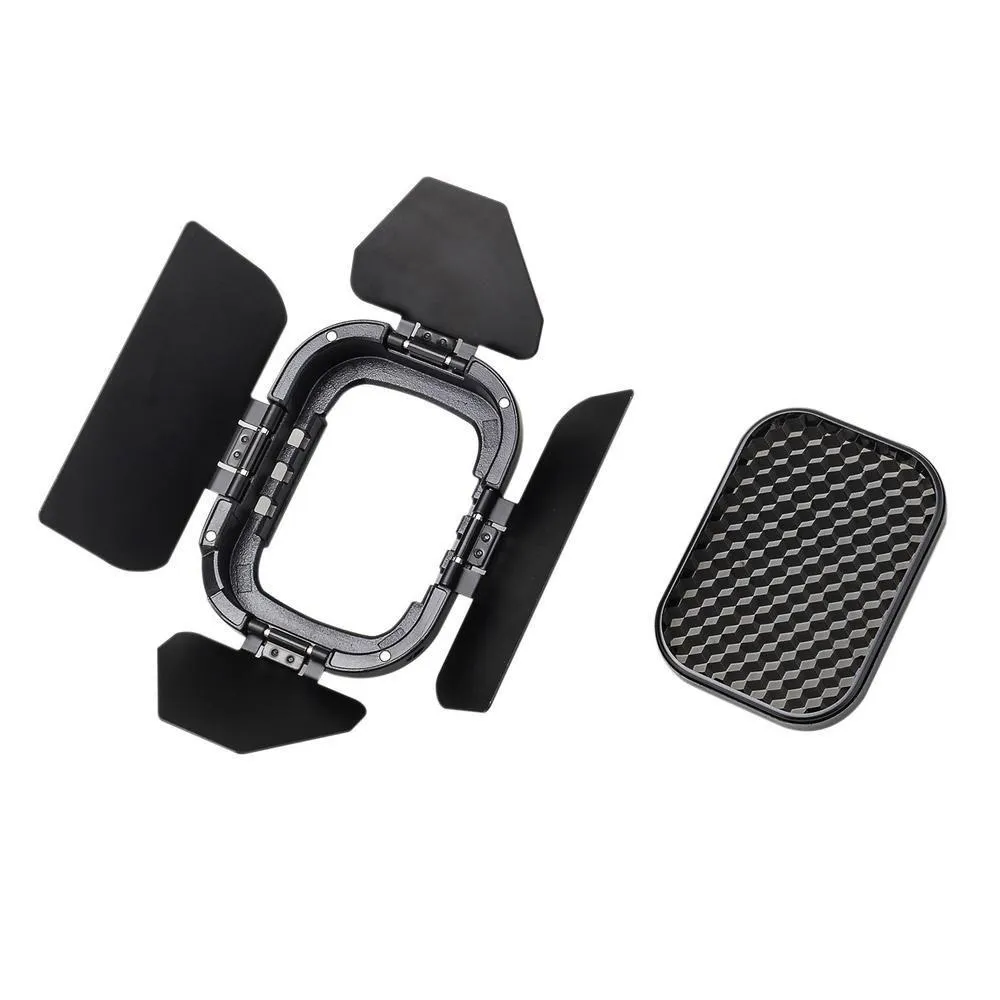

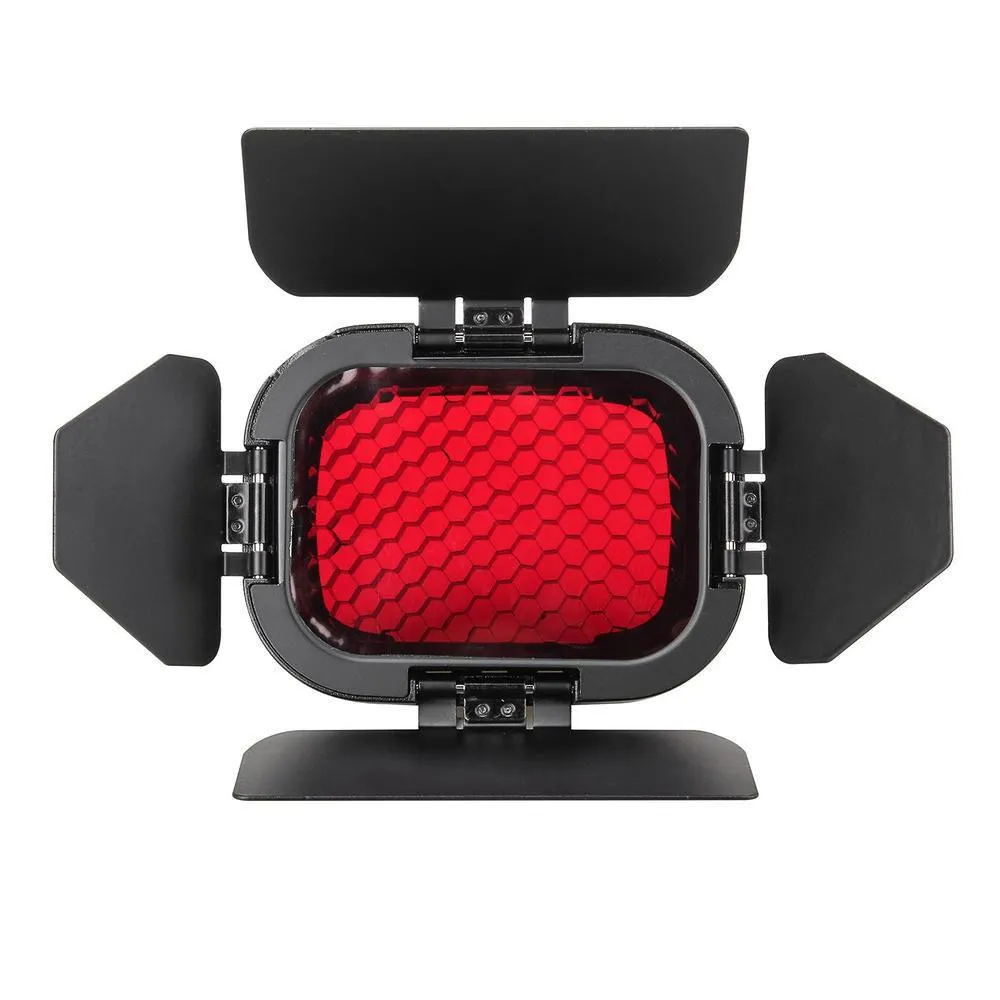

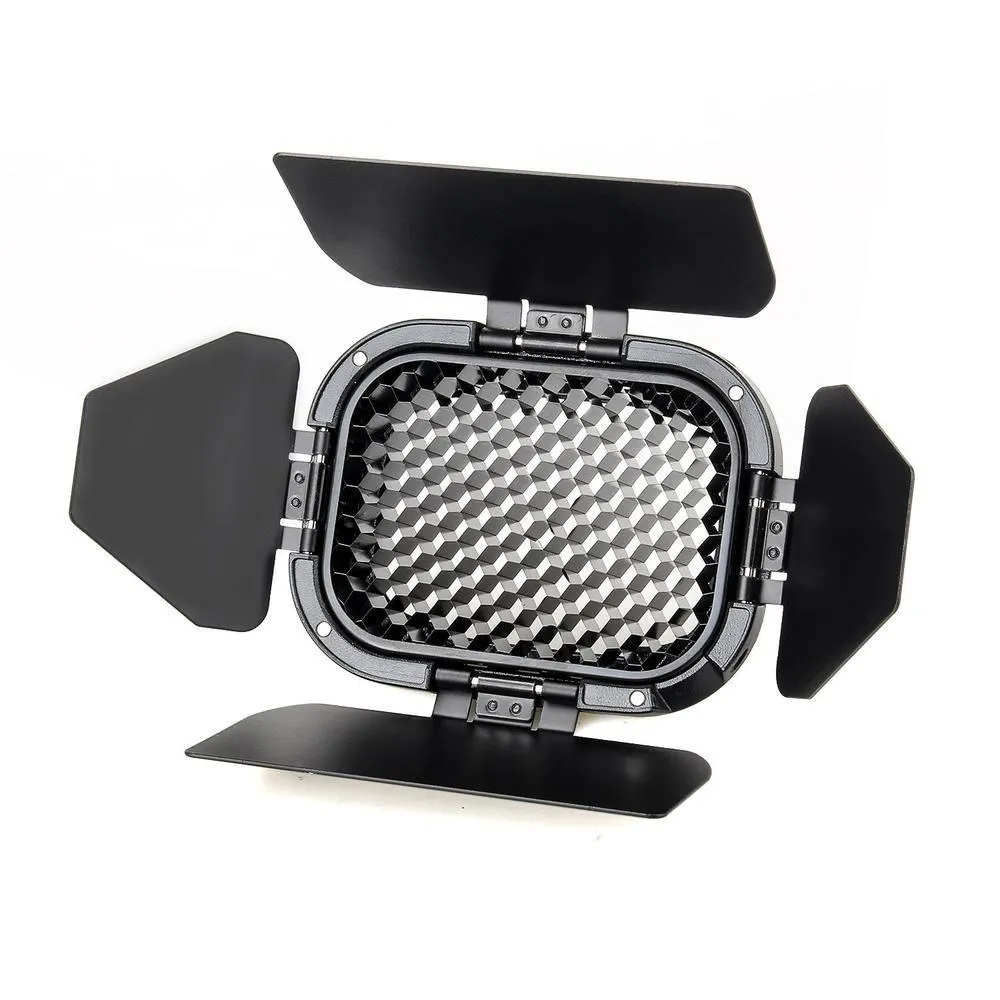

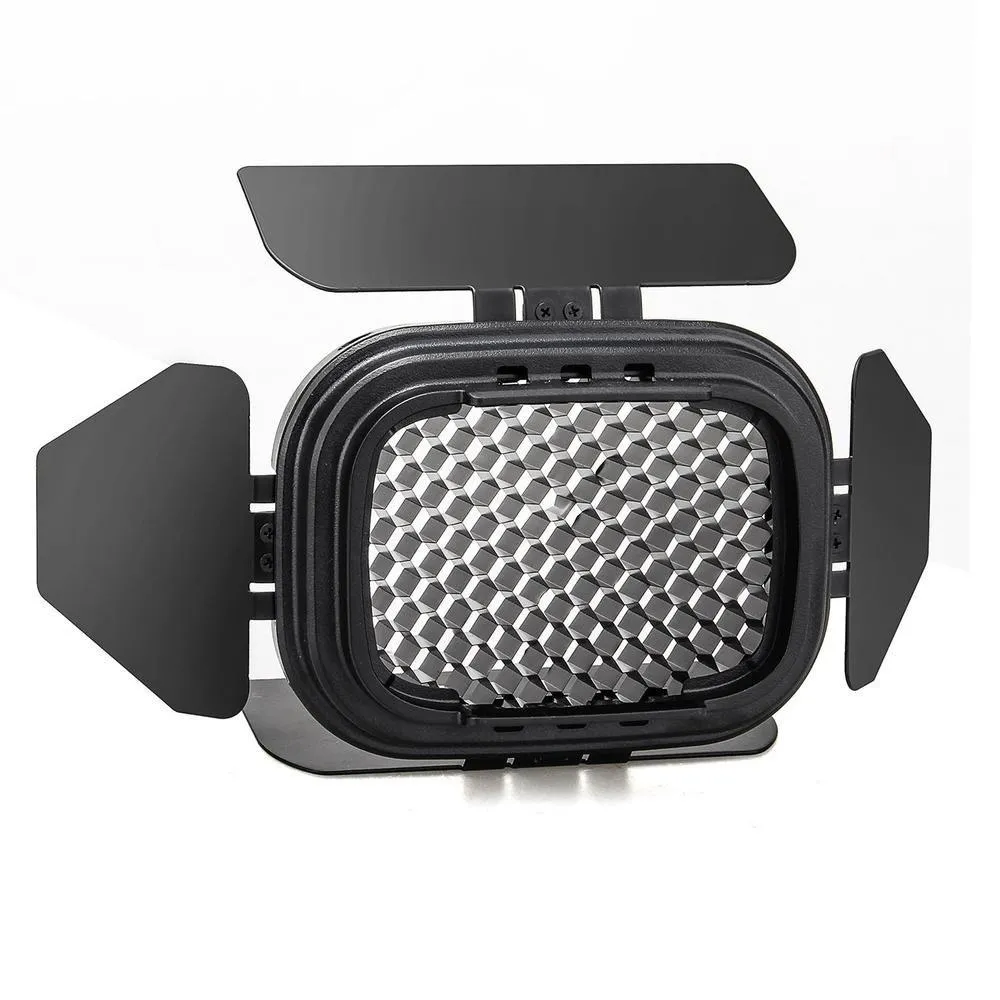

Godox BD-07 Barndoor with Detachable Honeycomb Grid and 4 Colour Gels

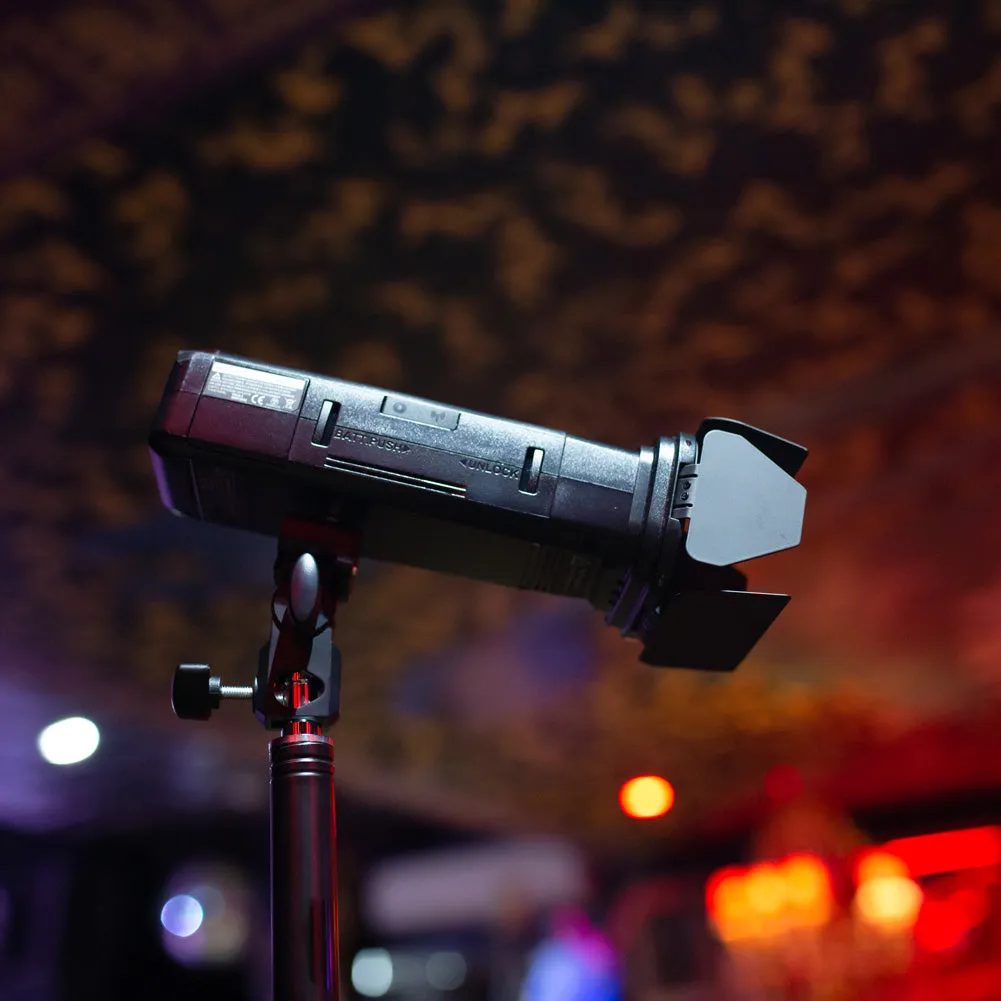

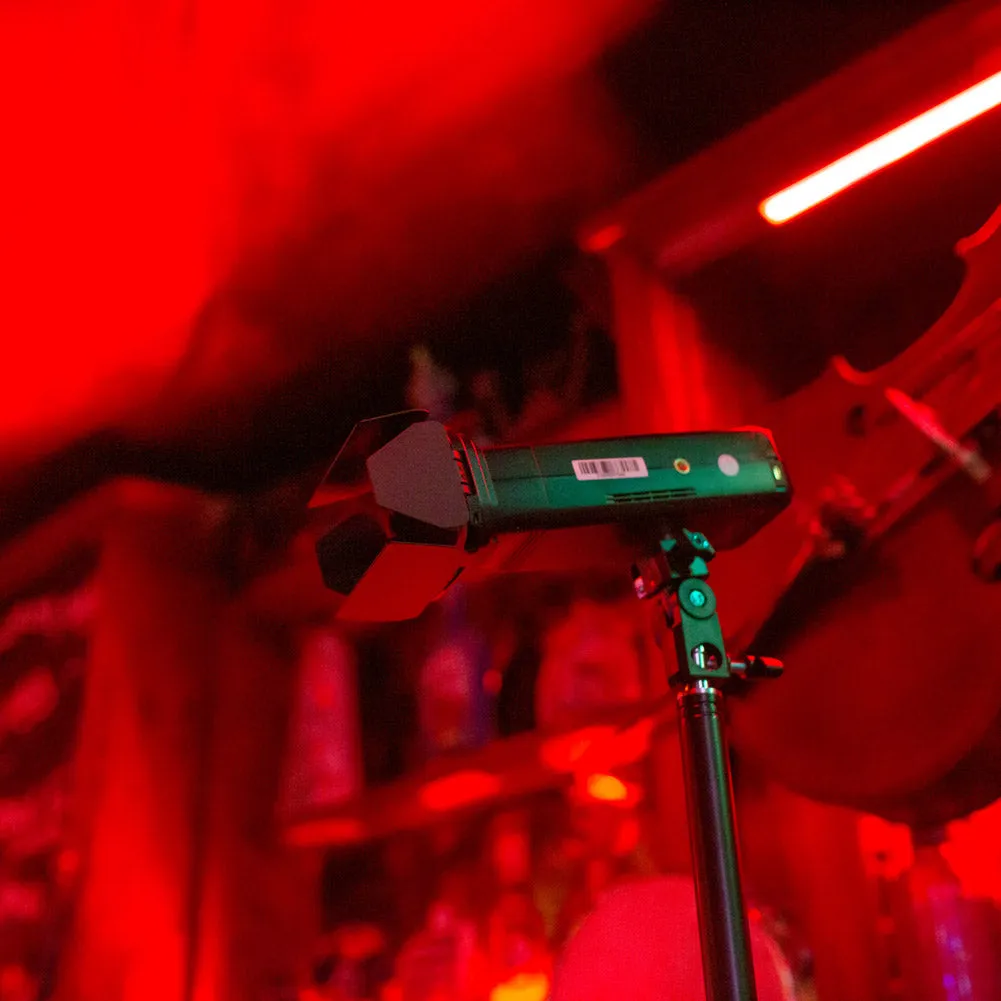

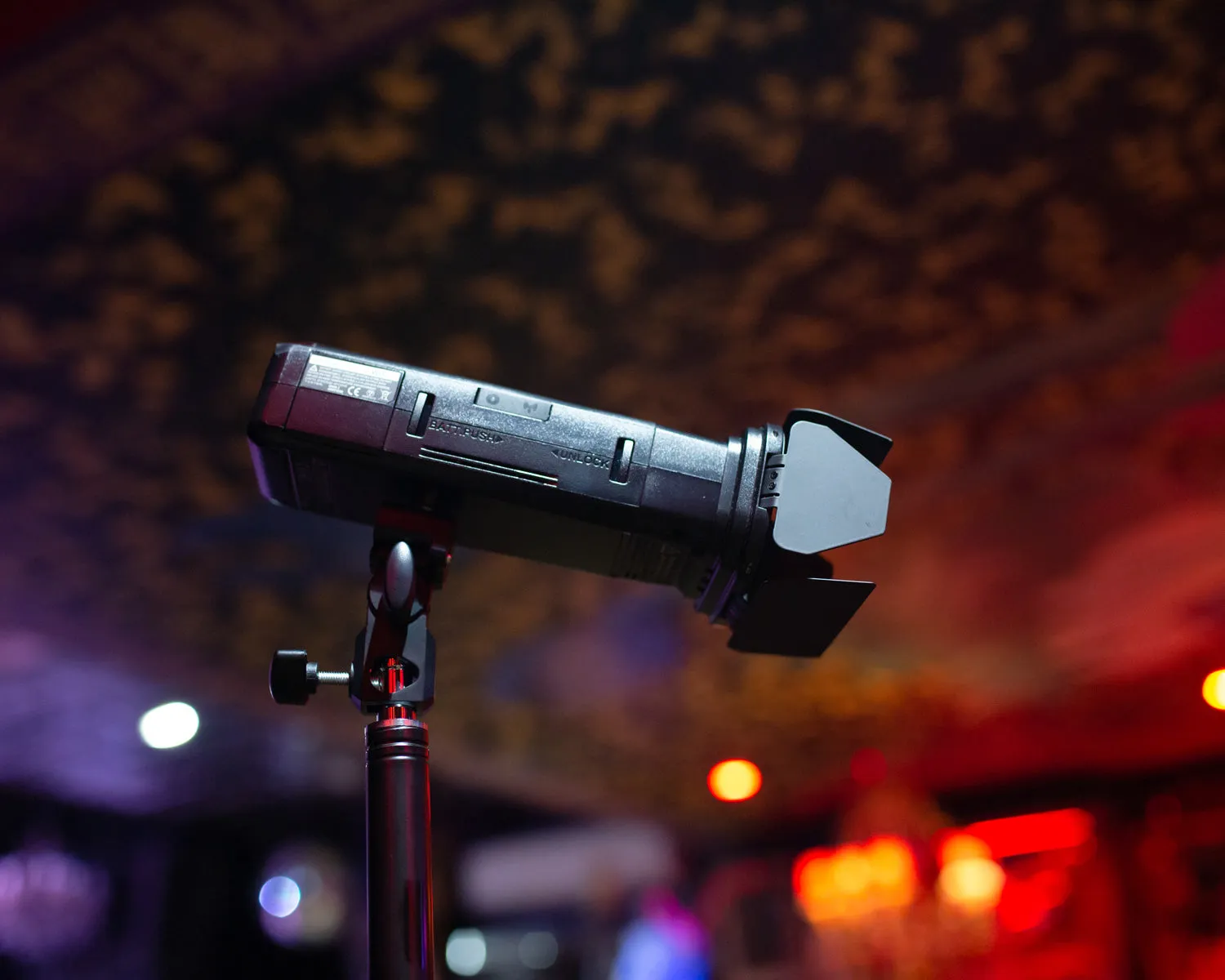

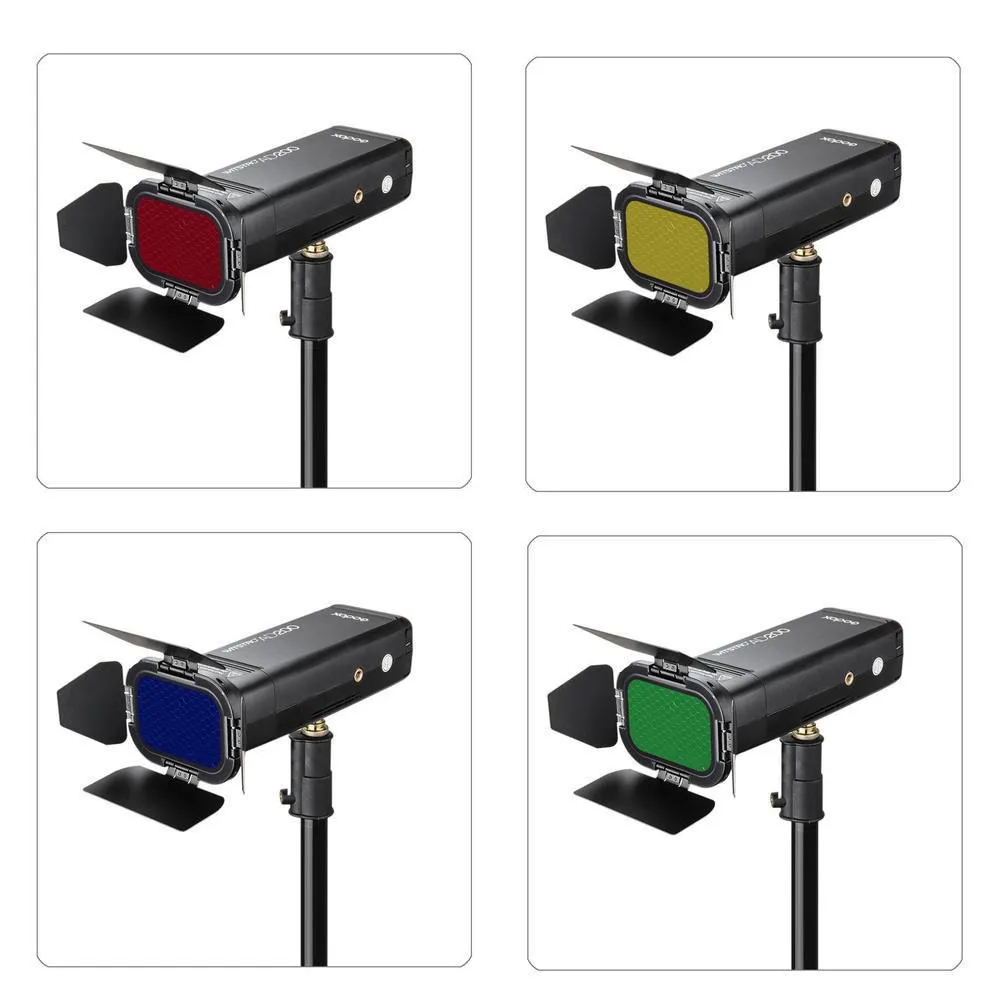

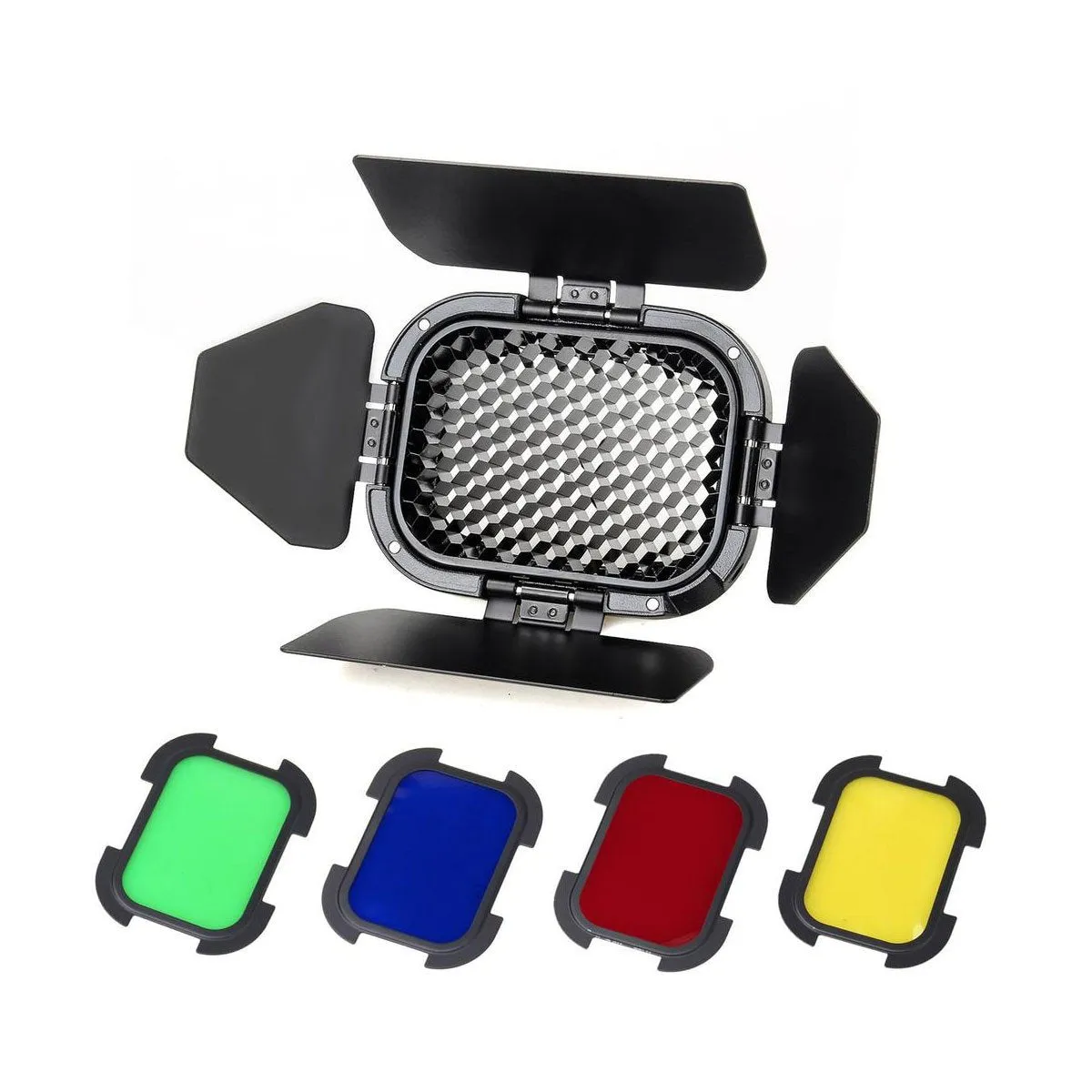

The Barndoor Kit with 4 Color Gels for the AD200 series flash from Godox attaches directly to the front of the flash. Each leaf on the 4-leaf barndoor moves independently to maintain and control the direction of the light. A 4-colour gel set is also included, which consists of red, blue, yellow, and green colours. These gels help create dramatic lighting effects in your images.
Features
- 4-Leaf Barndoor with Honeycomb Grid
- Controls the Direction of the Light
- Gels for Dramatic Lighting
- Gel Set: Red, Blue, Yellow, and Green
- Helps produce different lighting effects and provide a more directional focused light with the use of the detachable honeycomb grid.
- Produces a smooth and natural contrast lighting / shading effects.
- Compatible with the Godox Witstro AD200 & AD200Pro
Upgrade to the

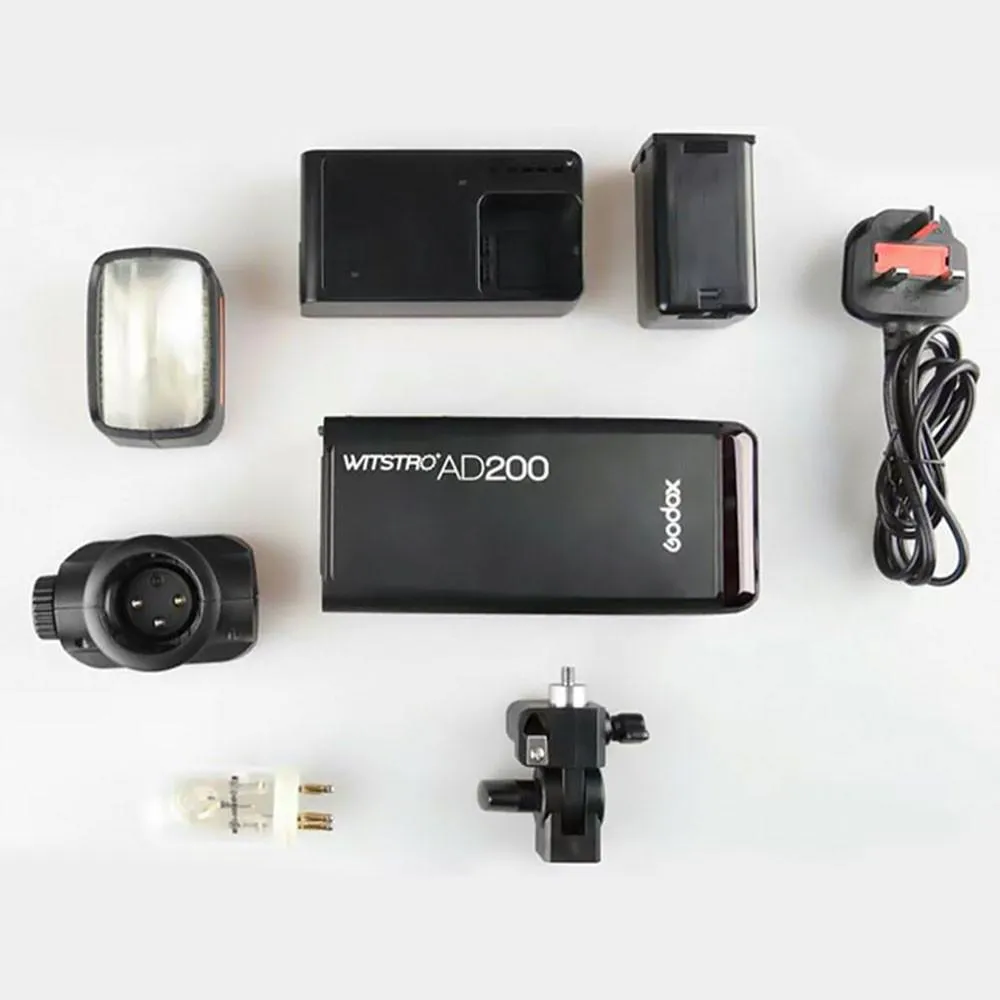

What's Included
1x Godox Witstro AD200 200W Wireless Portable Outdoor TTL Flash
1x AD200 WB29 Battery
1x AD200 Speedlite Flash Head
1x Bare Bulb Flash Head
1x AD200 200W Bare Bulb
1x Flash Bracket
1x Battery Charger and Cable
1x Godox Soft Carry Case
1x Godox BD-07 Barndoor and Honeycomb Grid Set
